Primary pharmaceutical packaging · Made in Saudi Arabia

Packaging that protects every dose.

Type I borosilicate glass ampoules and injection vials, HDPE tablet bottles, child-resistant closures and dosing cups — produced under cleanroom conditions in Saudi Arabia.

Explore the range Download the catalogue
The PSI range: HDPE tablet bottles, child-resistant closures, a measuring cup, glass ampoules and injection vials
ISO 14644-1 Class 8Cleanroom production and packing
Type I borosilicate glassPharmaceutical tubing from a leading global manufacturer
ISO 8362-1 · ISO 9187-1Vials and ampoules to ISO dimensions
Made in Saudi ArabiaSudair Industrial City

About PSI

We make the packaging components that touch your medicine. Glass for injectables. Plastics for tablets, capsules and oral liquids. One quality standard, one cleanroom, one partner — close to you.

60+

Years of combined experience.

The founders of Pharmapack Sudair bring more than 60 years of combined experience in pharmaceutical packaging — in glass, in plastics, and in building the quality systems around them.

5product families, from ampoules to dosing cups
90+standard catalogue configurations
Class 8ISO 14644-1 cleanroom production and packing
100 %in-line camera inspection of glass containers

Made in Saudi Arabia

Made in the Kingdom.For the Kingdom and the region.

Every PSI ampoule, vial, bottle, closure and measuring cup is formed, moulded, inspected and packed at our own plant in Sudair Industrial City, Riyadh Region.

Close to your filling lineShorter lead times, lower freight risk and a supplier who can be on your site the same week.
A more secure supply chainPrimary packaging made in the Kingdom reduces dependence on imports for the medicines made here.
Glass and plastics, one siteTube converting, moulding and assembly under one roof and one quality system.

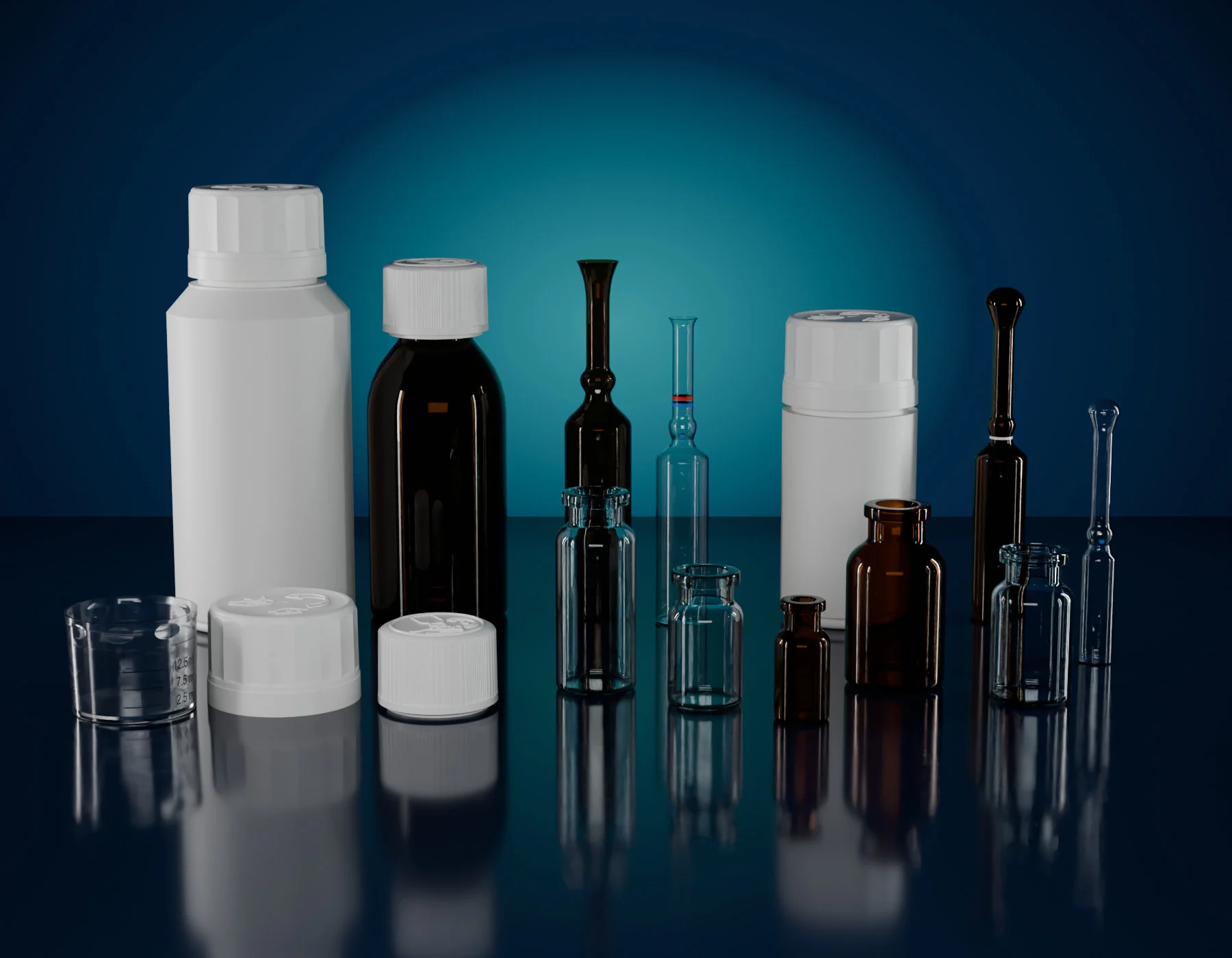

Product range

Our range at a glance.

Two material platforms, one quality standard: parenteral glass containers from Type I borosilicate tubing, and plastic packaging for tablets, capsules and oral liquids.

Glass

Ampoules

ISO 9187-1 · forms B, C and D · 1–20 ml · clear and amber

Learn more
Glass

Injection vials

ISO 8362-1 · 2R–20R · 13 and 20 mm crimp necks · clear and amber

Learn more
Plastics

HDPE tablet bottles

60, 100, 150, 200 and 250 ml · white pharma-grade HDPE · one 38 mm neck across the range

Learn more
Plastics

CRC 38 mm closure

Push-and-turn, with pre-fitted induction seal liner

Learn more
Plastics

CRC 28 mm closure

Tamper-evident ring · four liner options

Learn more
Plastics

15 ml measuring cup

Clear PP · graduations readable from outside

Learn more

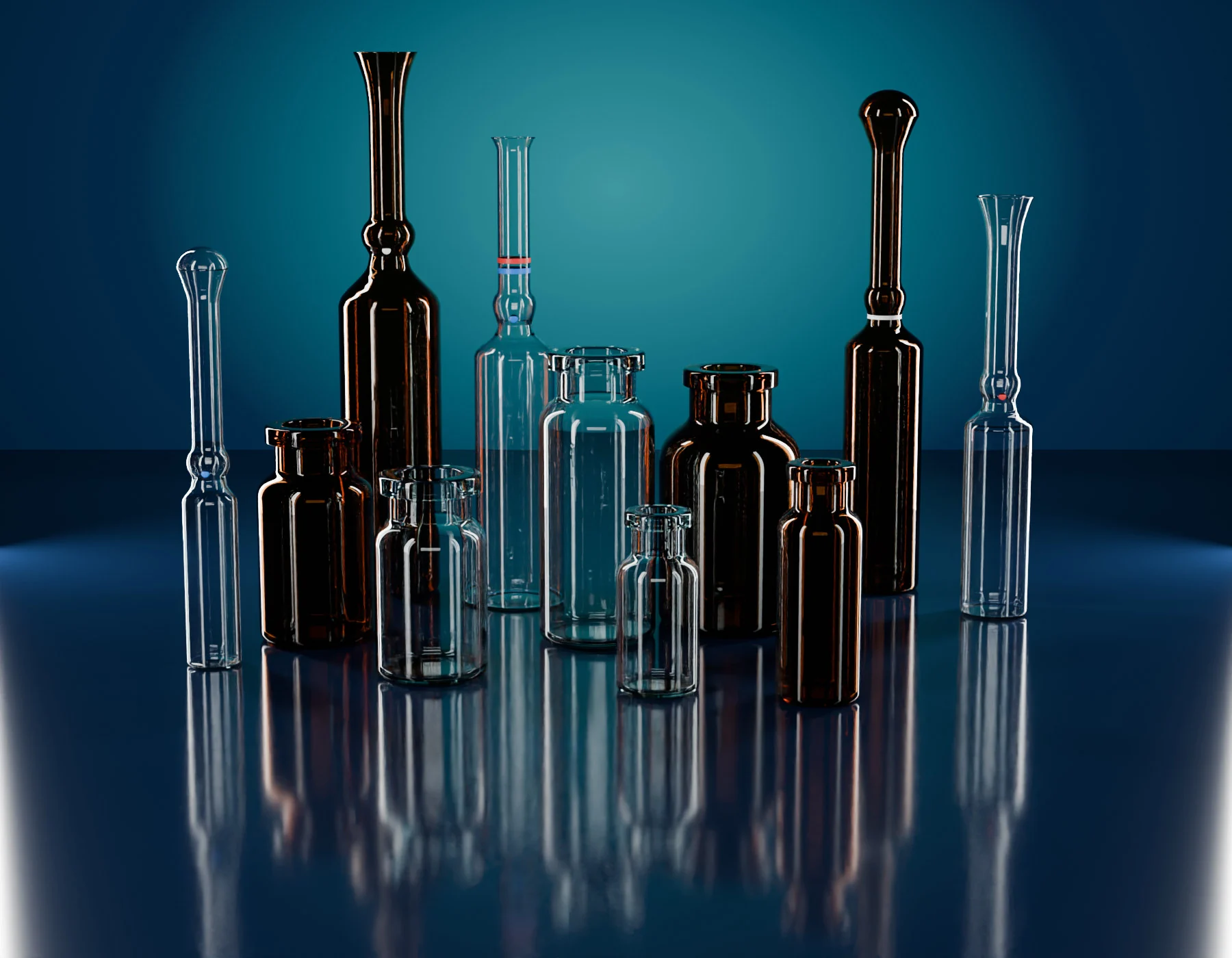

Tubular glass

Ampoules & injection vials.

Formed from premium Type I borosilicate glass tubing — the reference material for parenteral packaging, with outstanding chemical resistance and tight tubing tolerances.

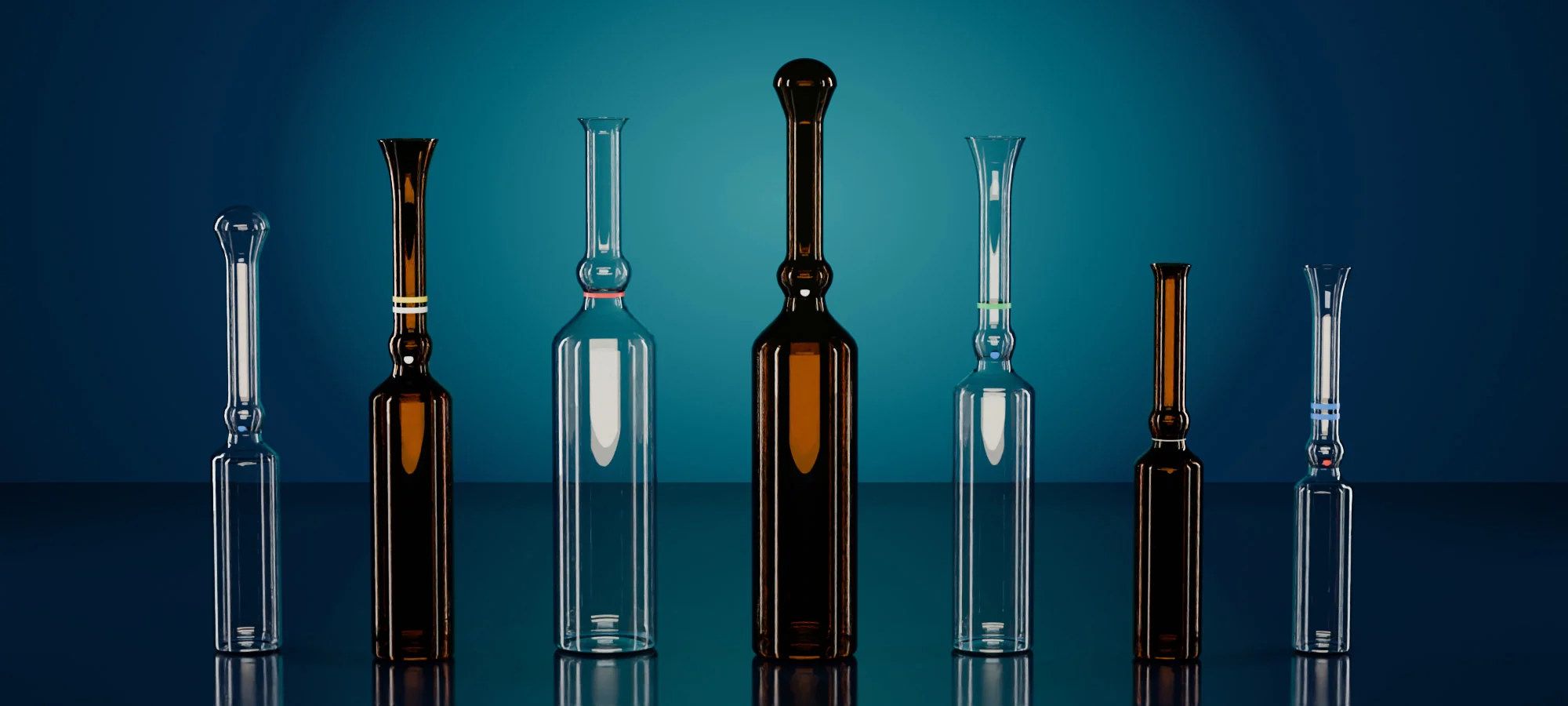

Forms B, C and D ampoules in clear and amber glass

Choose the glass that suits your formulation.

Clear and amber are our standard. Options -CHR and -PRO are available for clear ampoules and vials.

Standard

Clear

Type I borosilicate glass to Ph. Eur. 3.2.1 and USP <660>, hydrolytic class HGB 1.

Standard

Amber

For light-sensitive drugs. Protects your product in the UV and blue range.

Option · -CHR

Controlled hydrolytic resistance

Controlled sodium release from the inner surface for sodium-sensitive products. Same composition as our standard clear glass.

Option · -PRO

Enhanced chemical durability

For demanding formulations. It has a different composition from standard clear glass — please assess the regulatory impact before switching.

Typical glass tubing data
PropertyClearAmberClear -PRO
Glass type (Ph. Eur. 3.2.1 · USP <660>)Type IType IType I
Hydrolytic resistance, grains (ISO 719)HGB 1HGB 1HGB 1
Acid / alkali class (DIN 12116 / ISO 695)S1 / A2S1 / A2S1 / A2
Mean thermal expansion 20–300 °C (10⁻⁶ K⁻¹)4.95.45.2
Transformation temperature Tg (°C)565550560
Density (g/cm³)2.342.422.32
Light protection—UV / blue-light protection—

Glass tubing: FIOLAX® clear and FIOLAX® amber from SCHOTT AG; option -CHR = FIOLAX® clear CHR; option -PRO = FIOLAX® Pro. FIOLAX® is a registered trademark of SCHOTT AG. Property values are typical data of the tubing manufacturer.

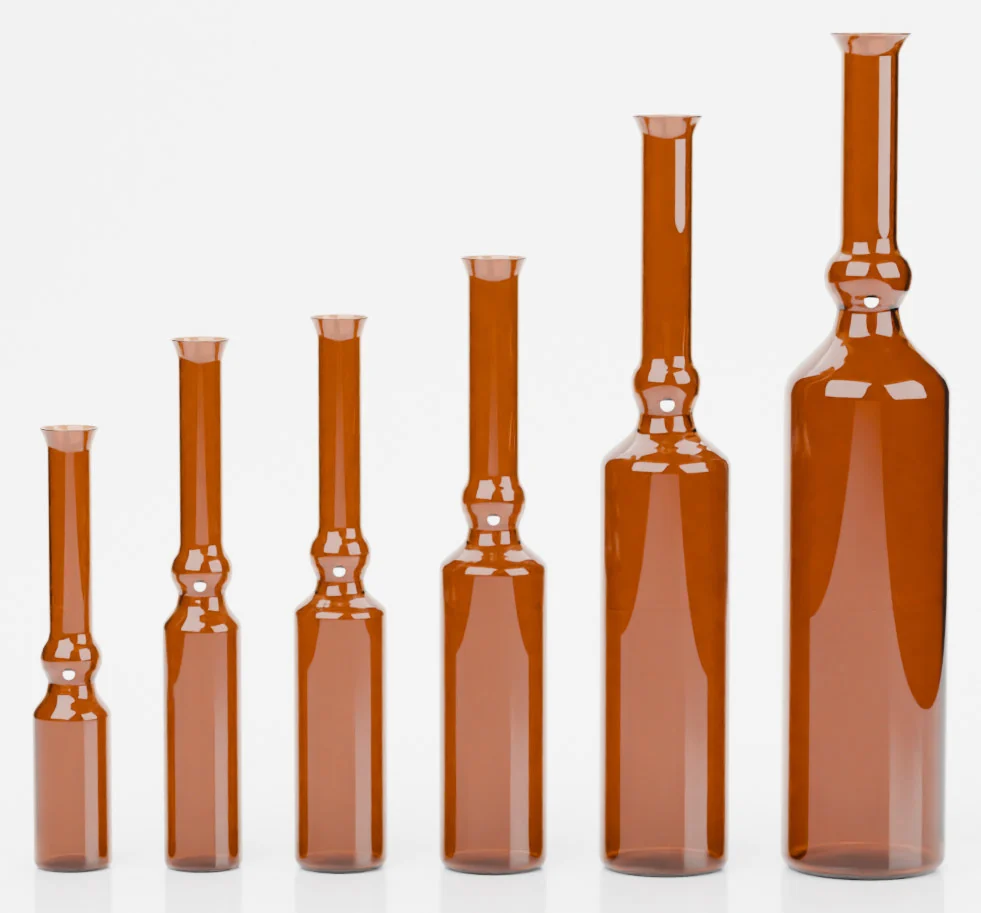

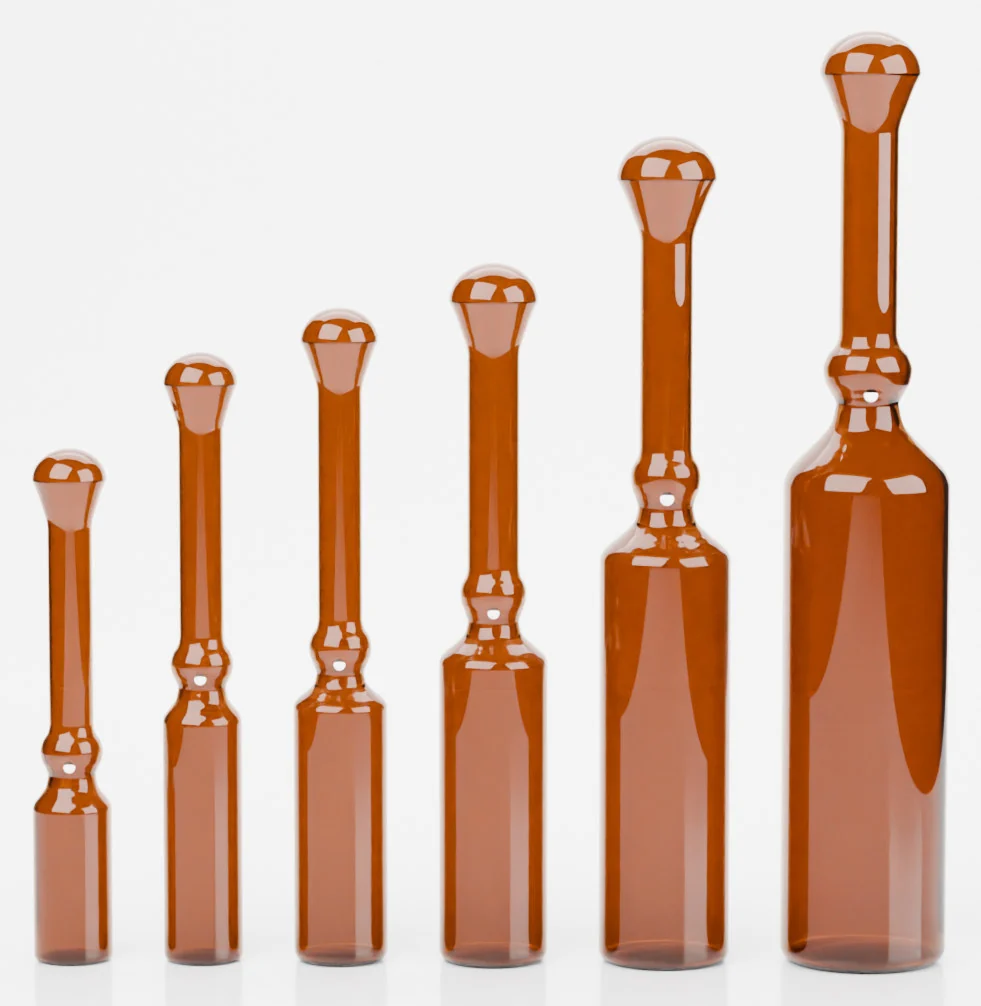

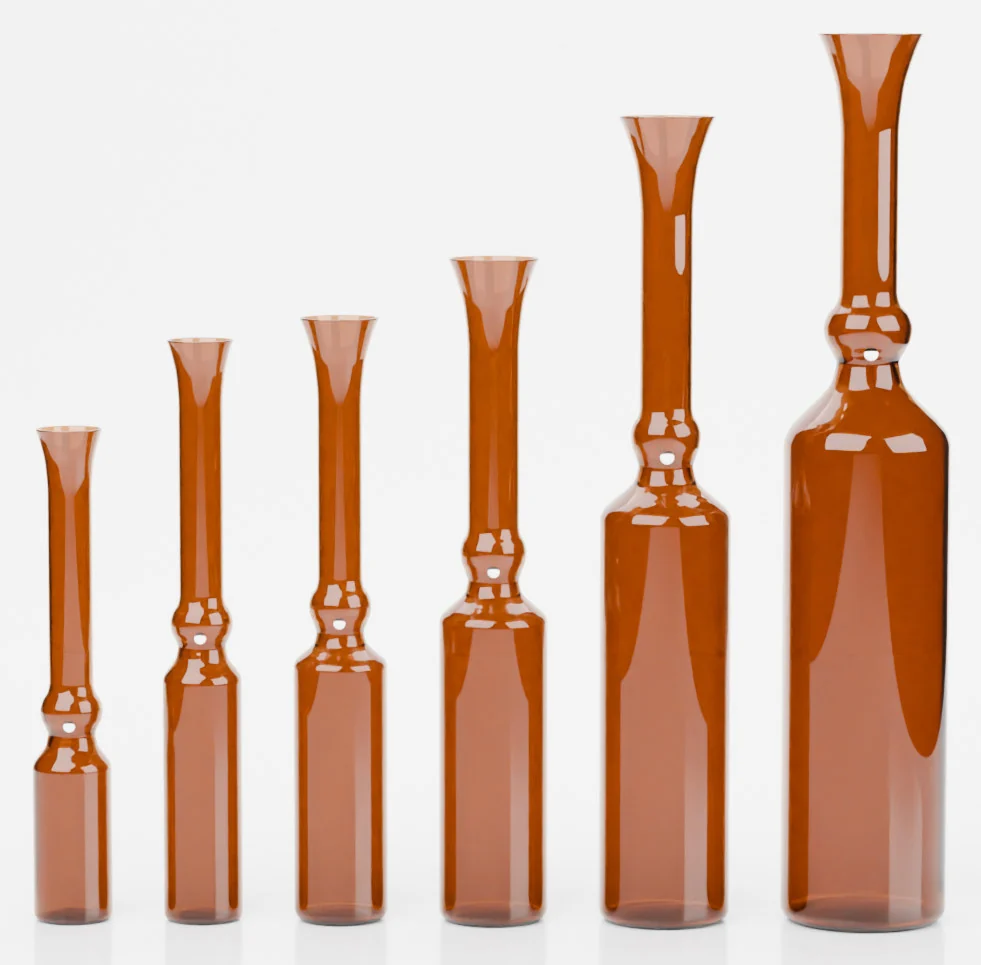

Form B ampoules, 1 to 20 ml Form C ampoules, 1 to 20 ml Form D ampoules, 1 to 20 ml

Glass ampoules · ISO 9187-1

Ampoules in three ISO forms.

Precision-formed ampoules for injectables, with break systems and colour coding matched to your product and filling line.

Form BCut ampoule

Straight stem, cut and fire-polished open. Filled through the stem and flame-sealed on your filling line.

Six ISO capacities1, 2, 3, 5, 10 and 20 ml in each form, dimensioned to ISO 9187-1.
Clear or amberType I borosilicate glass; -CHR and -PRO options for clear glass.
Three break systemsOne-point-cut (OPC) with colour dot, colour break ring or score ring.
Colour codingUp to three identification rings and ceramic printing of your artwork.

Sizes & dimensions

Body Ø d1
mm
Height, form B
mm
Height, form C
mm
Height, form D
mm
Constriction height
mm
Brimful, B / C
ml
Weight ≈, clear B / C / D
g
Breaking force, OPC
N
Breaking force, score ring
N

Height tolerance ± 1 mm (20 ml form C: ± 1.5 mm). Weights are calculated typical values; amber is about 3 % heavier. Breaking forces are guide values measured to ISO 9187-1 / -2.

Break systems & marking.

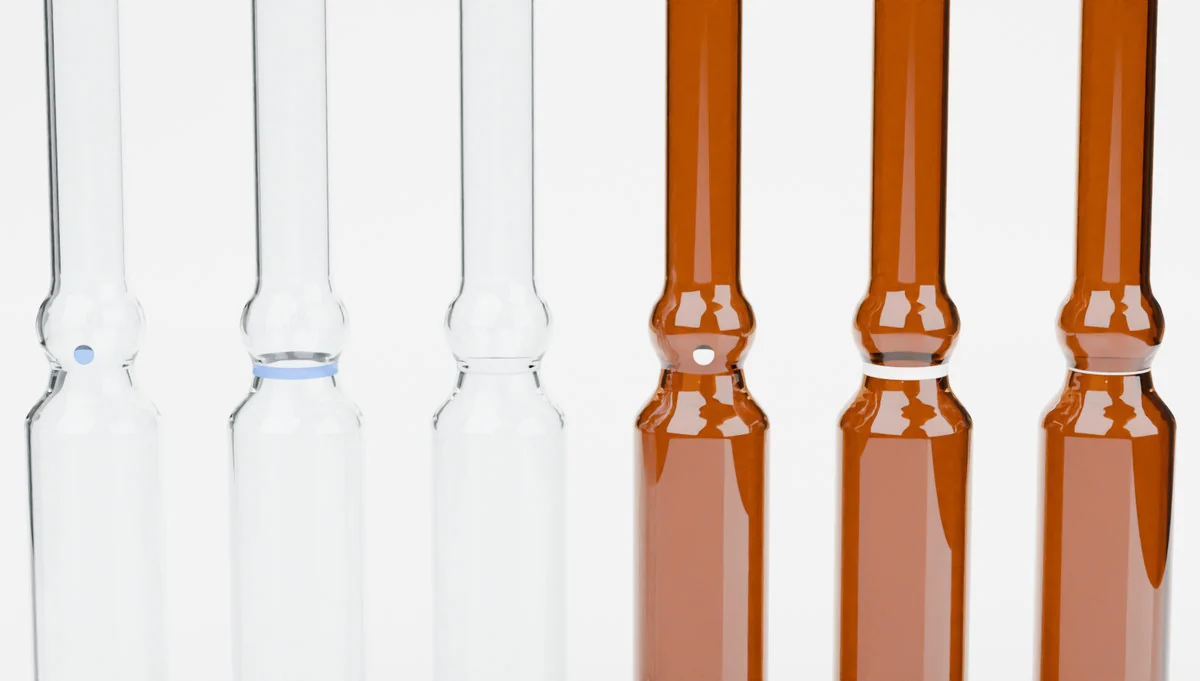

One-point-cut dot, colour break ring and score ring on clear and amber glass
OPC

One-point-cut

A pre-scored point under a ceramic colour dot (ISO 9187-2). Opens cleanly with a consistent breaking force.

CBR

Colour break ring

A ceramic colour ring at the constriction that sets the breaking line and colour-codes the product.

SCR

Score ring

A fine scored ring around the constriction (ISO 9187-1) for a clean break in any direction.

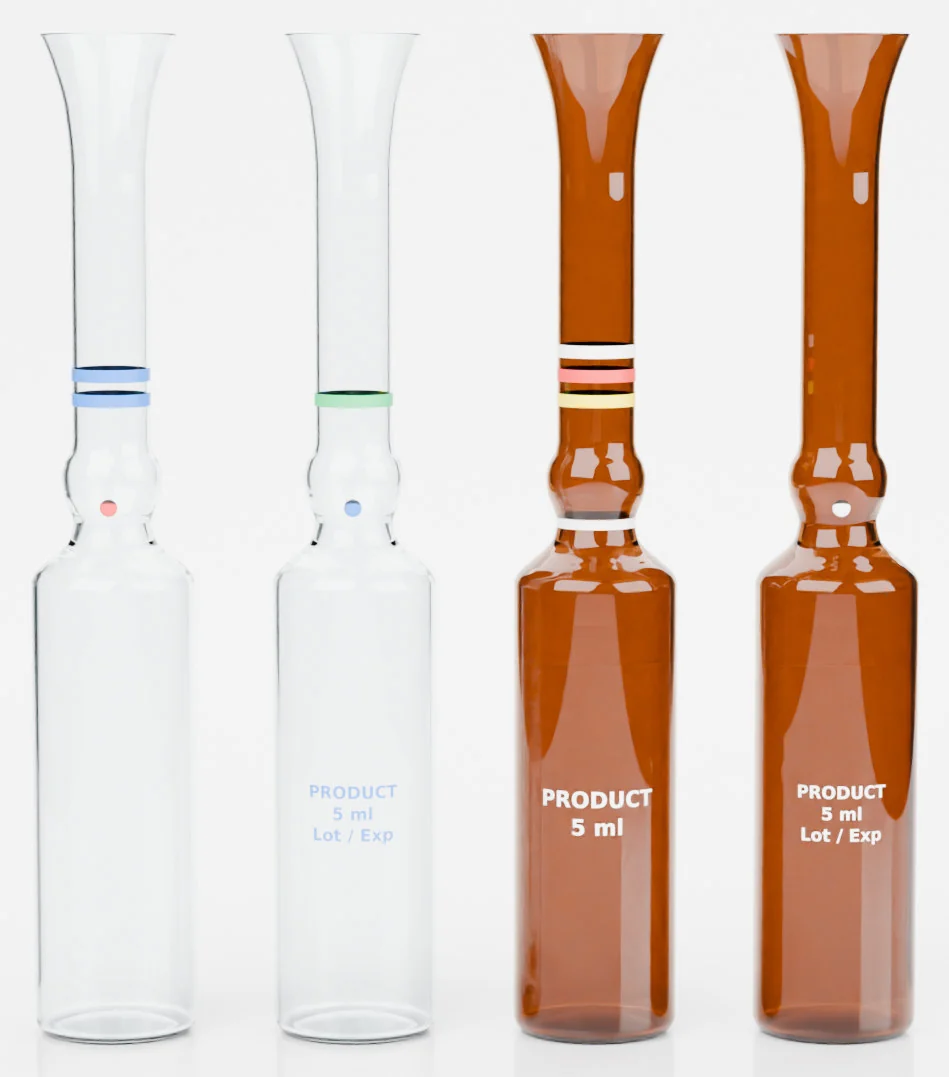

Form C ampoules with OPC dots, identification rings and ceramic printing

Colour coding & printing

  • 1–3 identification rings on the stem, 1.2 mm wide, in any colour sequence you specify
  • Ceramic printing of your product name, strength and lot area — fired into the glass, no labels or organic inks
  • Lead- and cadmium-free ceramic colours (no intentionally added heavy metals)
  • Filling-line ready: tight body and height tolerances, clean fire-polished stems and funnels, packed in clean trays under Class 8 conditions
White Blue Red Green Yellow Black Orange Violet

Standard ring and dot colours. Other shades on request.

Injection vials · ISO 8362-1

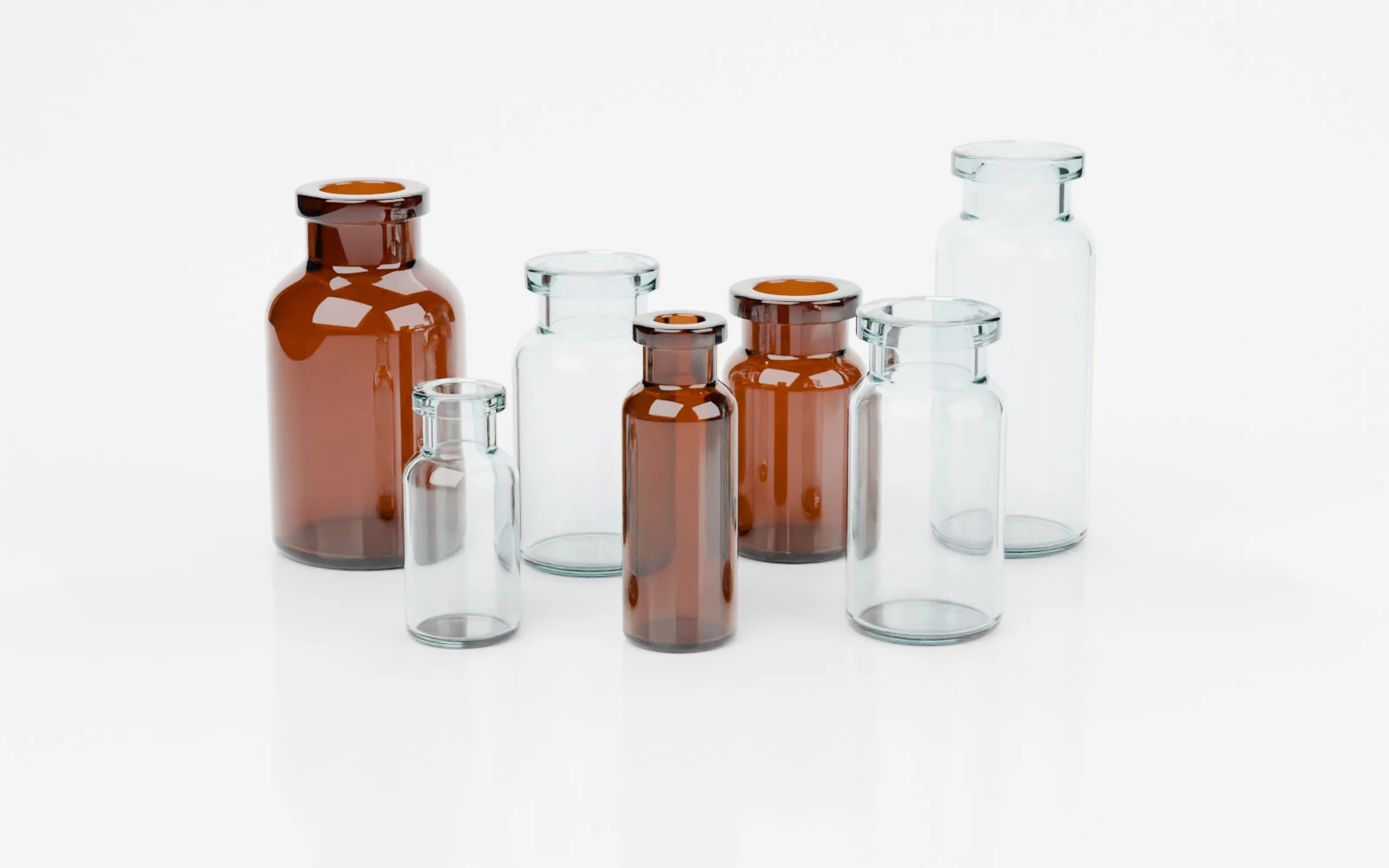

Injection vials, 2R to 20R.

Eight ISO sizes with 13 mm and 20 mm crimp necks — for liquid injectables and freeze-dried products.

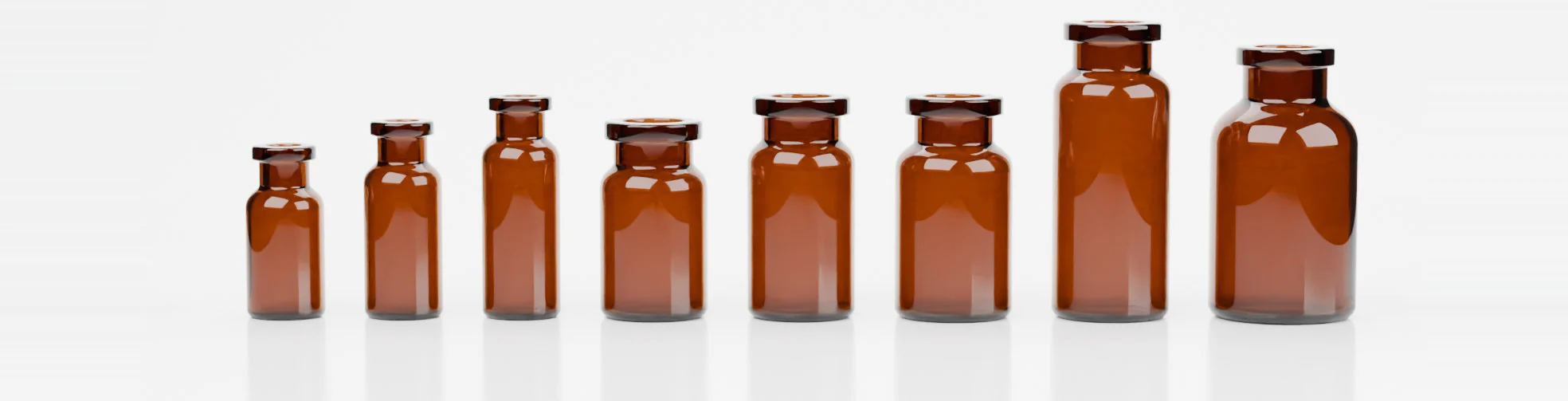

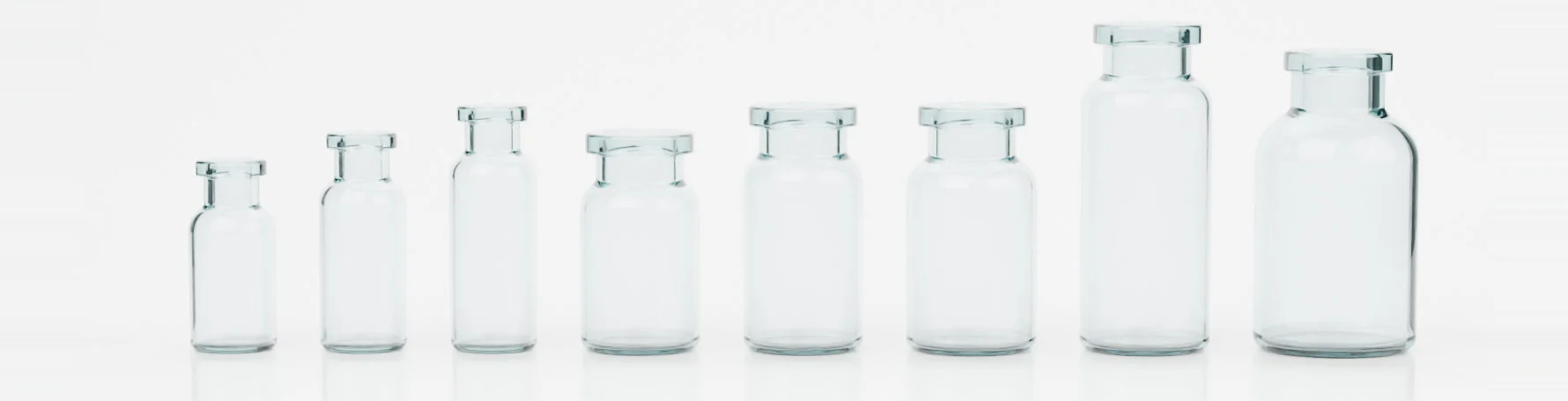

Clear vials 2R to 20R, to scale Amber vials 2R to 20R, to scale

Pick a size

Brimful, nominal
ml
Body Ø d1
mm
Height h1
mm
Crimp neck Ø d2
mm
Bore Ø d4
mm
Weight ≈, clear / amber
g

Weights are calculated typical values for the no-blowback neck. 3R is not listed in ISO 8362-1; it is offered as a widely used industry size. Drawing is schematic and to scale.

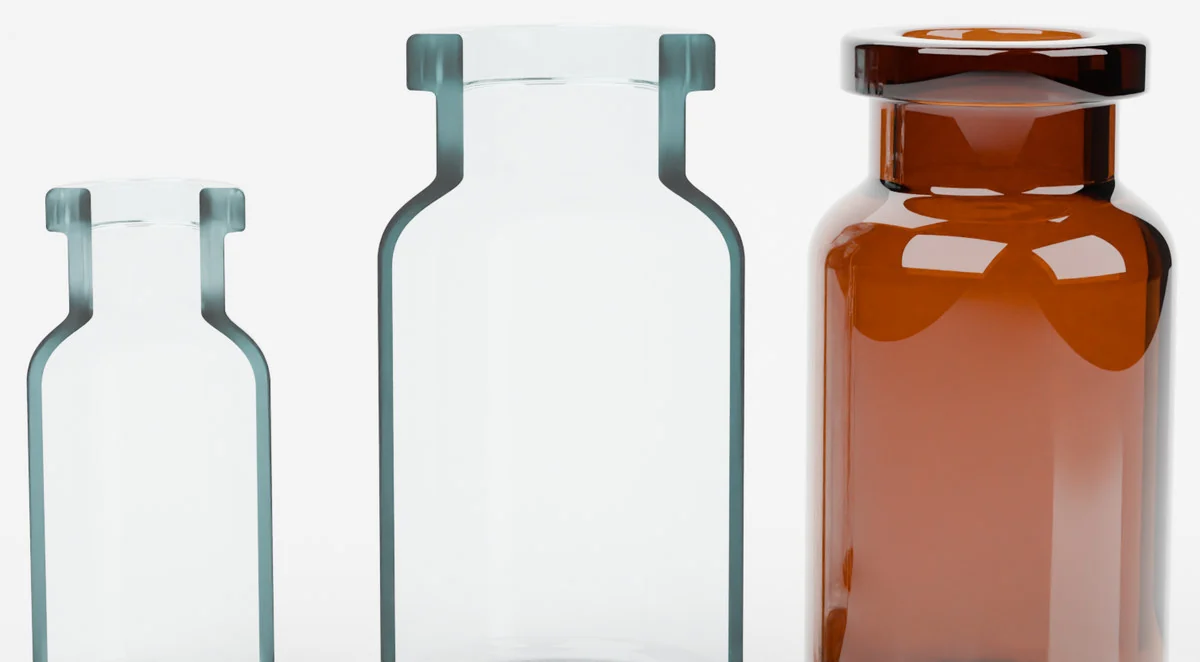

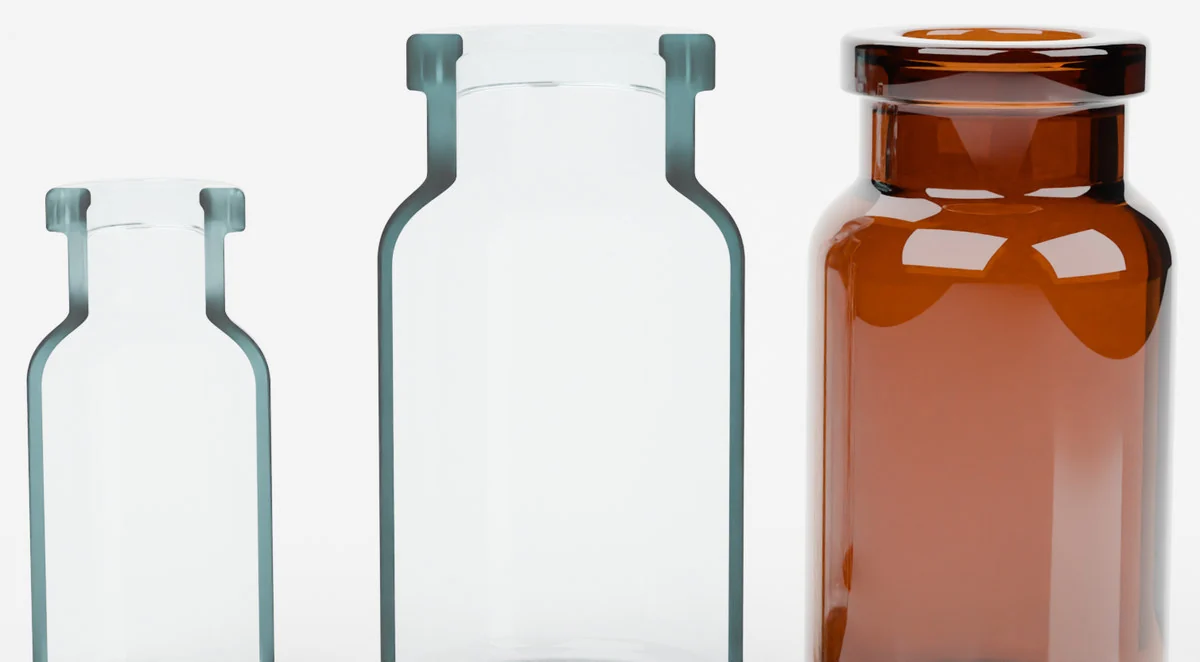

The right neck for your stopper.

Every vial size is available with three crimp-neck finishes. The blowback profile is formed inside the neck, so the outside crimp geometry stays the same for your capping line.

NBB

No blowback

Straight bore below the crimp flange. The universal finish for serum and lyophilisation stoppers.

EBB

European blowback

An internal undercut just below the mouth that holds the stopper plug securely after insertion.

ABB

American blowback

A rounded internal groove in the neck that retains stoppers designed for US-style blowback finishes.

All vial sizes
SizeBrimful, mlBody Ø d1, mmHeight h1, mmCrimp neckBore Ø d4, mmTubing OD × wall, mmWeight ≈ g, clear / amber
Blowback reference geometry
NeckEBB undercut Ø, mmABB groove Ø, mmABB groove width, mm
13 mm7.67.60.8
20 mm13.513.41

PSI reference values; blowback geometry is agreed with you against your stopper drawing.

Plastic packaging for oral dosage forms

Bottles, closures and dosing cups.

Moulded from pharmaceutical-grade polyolefins selected to Ph. Eur. 3.1.3 and USP <661.1> — designed as matched systems, so bottle and closure are qualified together.

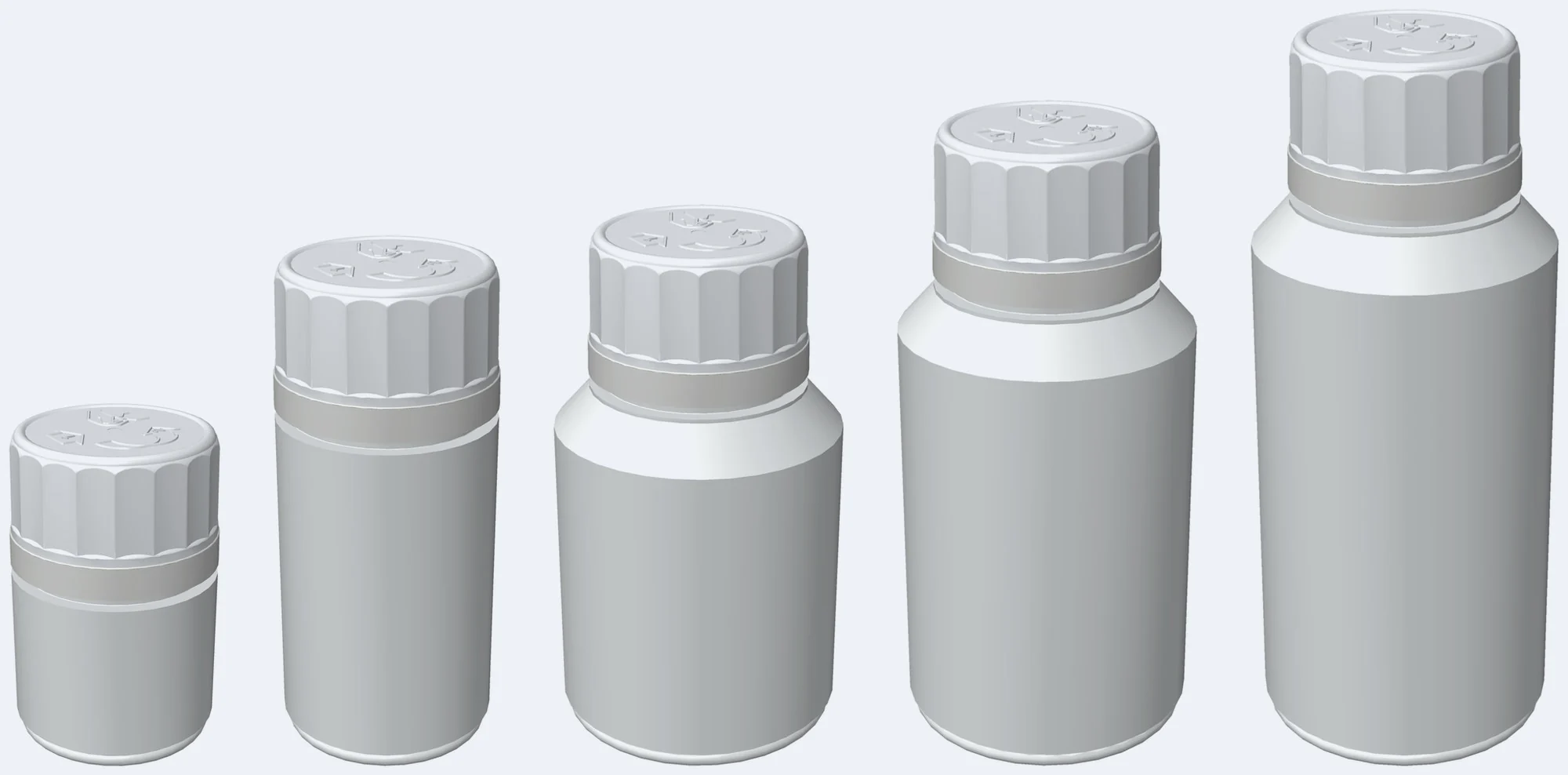

HDPE tablet bottles 60, 100, 150, 200 and 250 ml with CRC 38 closures

HDPE tablet bottles

Tablet bottles, 60 to 250 ml.

Injection blow-moulded white HDPE bottles for tablets and capsules — one 38 mm neck across the range, one closure for every size.

  • White pharma-grade HDPE, masterbatch 2.5 % for opacity
  • HDPE's low moisture transmission, sealed hermetically by the induction liner
  • Straight body section as a clean label panel
  • Stable base for automated filling and capping lines
  • Closure and bottle qualified together — one supplier, one change control

Pick a size

Height
mm
Body Ø
mm
Capped height, with CRC 38
mm
Brimful ≈
ml
Weight
g
Item code

Height ± 1.0 mm, body Ø ± 0.7 mm. 38 mm neck on all sizes.

Child-resistant closures

CRC 38 mm push-and-turn closure.

A two-piece child-resistant closure that arrives fully assembled with its induction seal liner — straight onto your capping and sealing line.

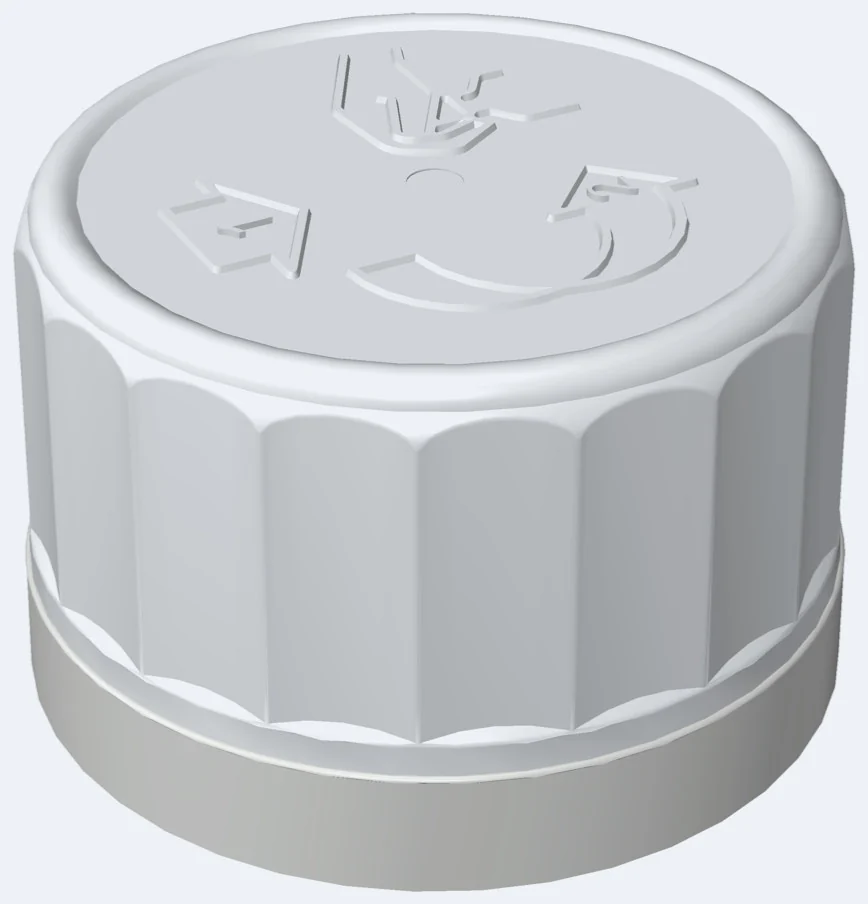

CRC 38 closure, top with push-and-turn instructions

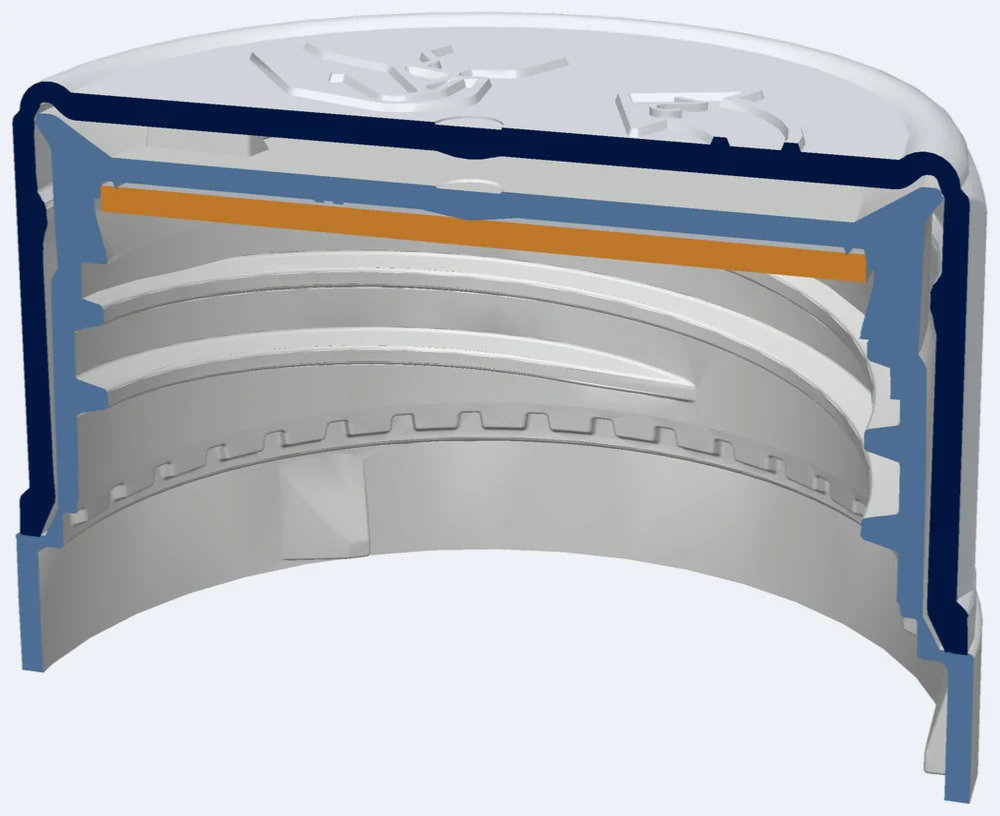

CRC 38 closure, section with induction seal liner

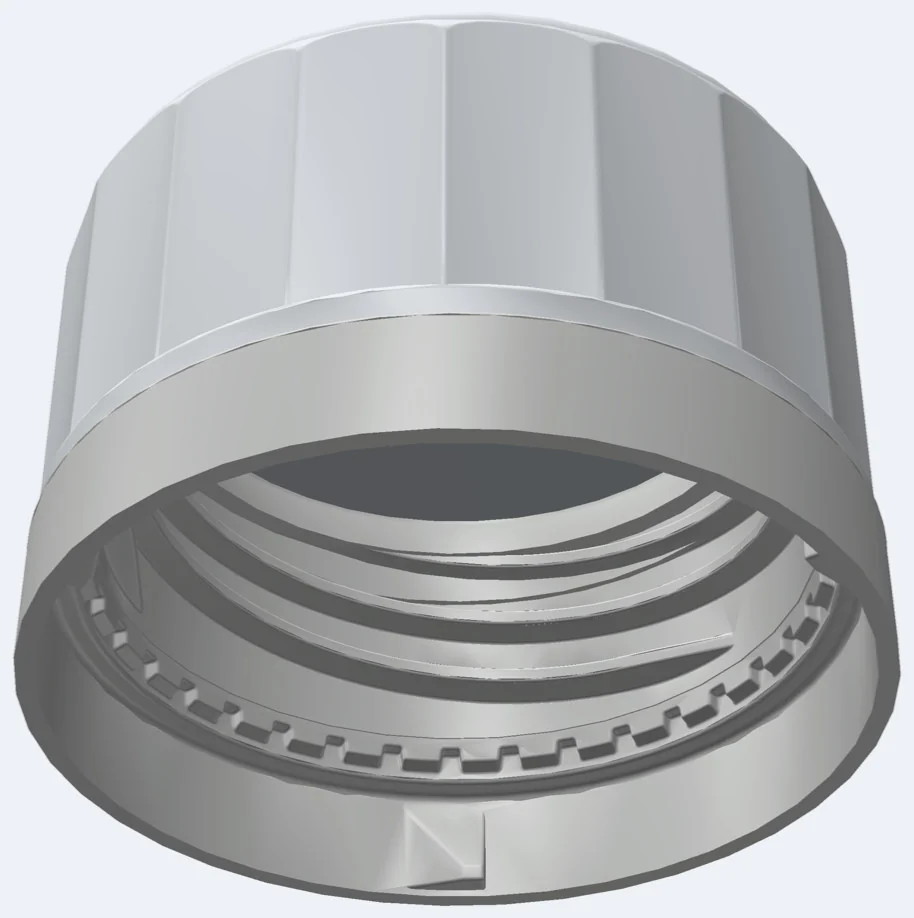

CRC 38 closure, underside

Why it works

  • Child resistant — push-and-turn action with embossed opening instructions on top
  • Hermetic, tamper-evident seal — induction liner bonds to the bottle rim
  • Line-ready — pre-assembled with liner, no extra handling
  • Recommended torque guide values supplied for your capping line
  • Fits all PSI tablet bottles, 60 to 250 ml
Neck finish
PSI 38 mm, 3-start thread
Overall Ø × height
45.2 × 28.9 mm
Weight (without liner)
10.5 g — outer cap 4.6 g, inner cap 5.9 g
Material
Polypropylene (PP), pharmaceutical grade
Liner
Two-piece induction seal, pre-fitted
Opening
Push down and turn
Child resistance
Push-and-turn child-resistant design; we are working towards child-resistance certification
Colour
White; other colours on request
Supplied
Fully assembled, non-sterile
Item code
PPS-CL-CRC38-WH

Child-resistant closures

CRC 28 mm tamper-evident closure.

Push-and-turn child resistance and a tamper-evident ring in one closure for oral liquids and solids — with four liner options and a matching dosing cup.

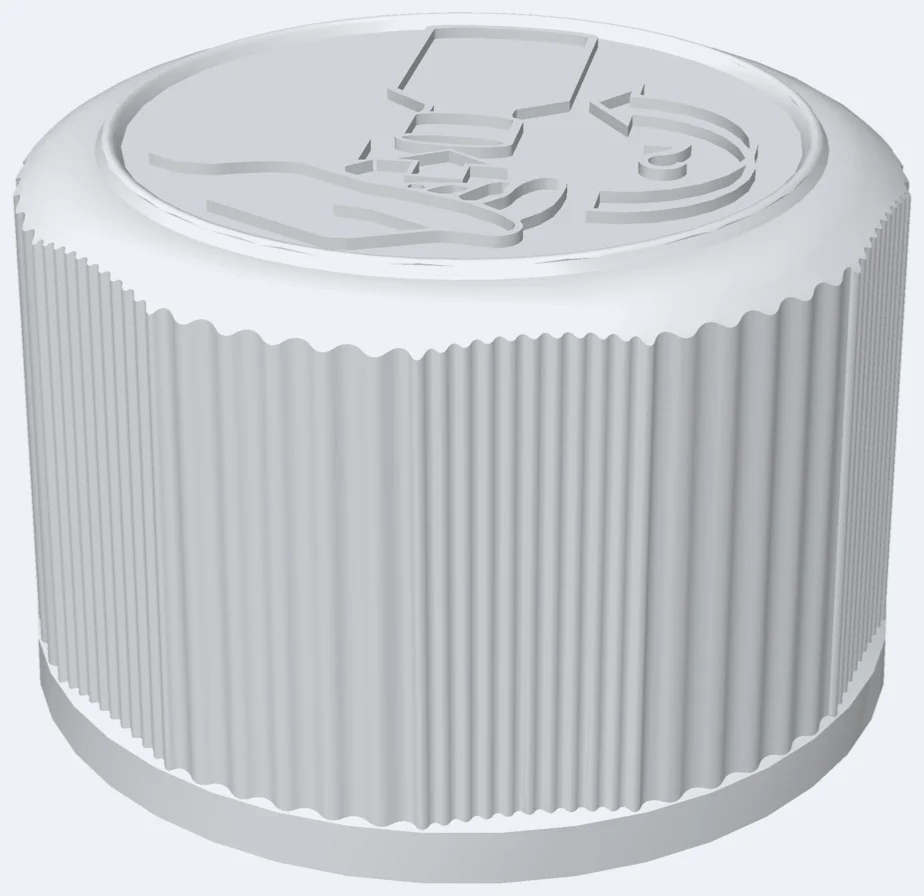

CRC 28 closure

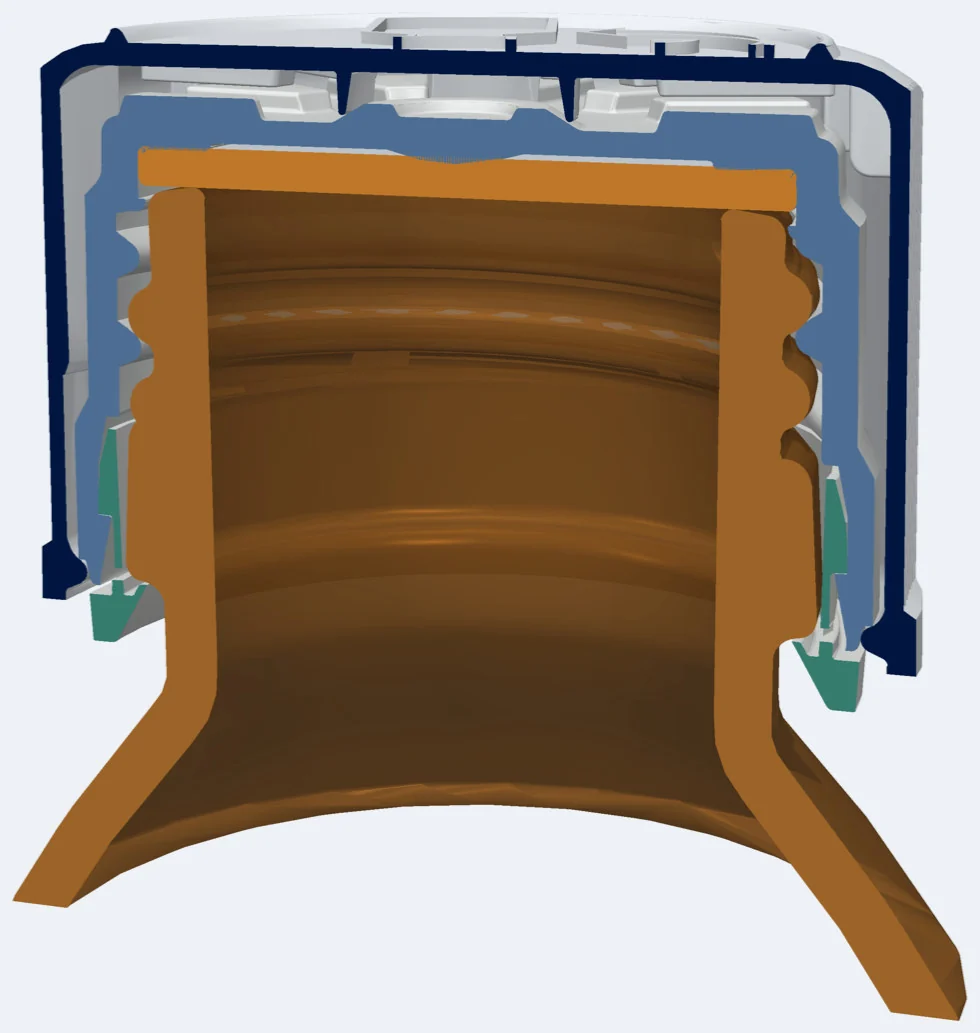

CRC 28 closure, section with liner and tamper-evident ring

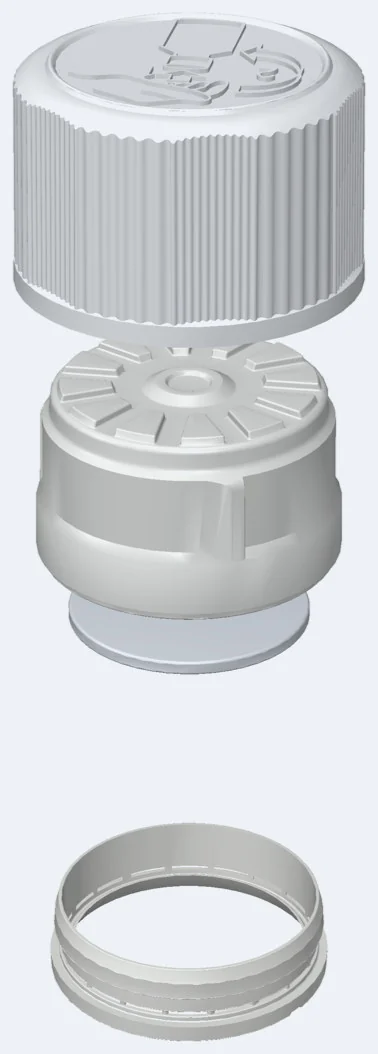

CRC 28 closure, exploded view

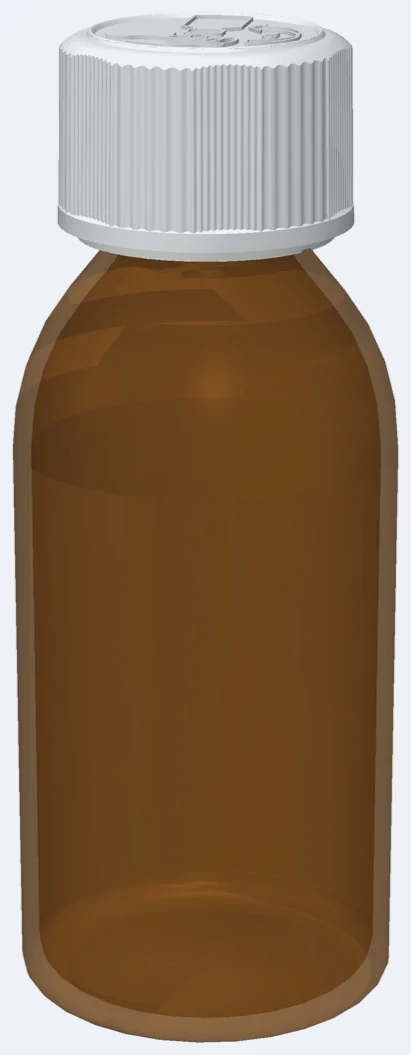

CRC 28 closure on a 28 mm bottle

Left to right: CRC 28 closure; section with liner and tamper-evident ring; exploded view; fitted on a 28 mm bottle. The bottle is shown for illustration only — PSI does not supply it.

Four liner options

-EPE

EPE foam

Foamed LDPE disc. General-purpose resealable seal for liquids and solids.

-IND

Induction seal

Backing / aluminium foil / heat-seal layer. Hermetic, tamper-evident seal for moisture- and oxygen-sensitive products.

-PVD

PVDC-faced foam

PE foam with PVDC film. Higher barrier and chemical resistance than plain foam.

-LDP

Moulded LDPE

Plug-type LDPE insert. Resealable plug seal, no bought-in liner.

Technical data
Neck finish
28 mm tamper-evident bottle neck
Max. Ø × height
35.3 × 24.3 mm
Weight (without liner)
6.1 g — outer 2.7 g, inner 2.9 g, TE ring 0.6 g
Materials
PP caps, pharmaceutical grade; TE ring polyolefin
Opening
Push down and turn; ring breaks on first opening
Child resistance
Push-and-turn child-resistant design; we are working towards child-resistance certification
Suitable for
Glass and plastic bottles with 28 mm TE necks
Supplied
Assembled with the chosen liner, non-sterile
Item code
PPS-CL-CRC28-WH-[EPE|IND|PVD|LDP]

Dosing accessories

15 ml measuring cup.

A crystal-clear dosing cup with moulded graduations that patients can read at eye level — designed to sit neatly over the PSI CRC 28 closure.

  • Reads from outside — raised numerals and lines on a transparent wall, no need to look into the cup
  • Common dose steps — 2.5, 5, 7.5, 10, 12.5 and 15 ml marks for paediatric and adult dosing
  • Five scales around the cup, accuracy ± 0.5 ml at each mark
  • Clear polypropylene random copolymer, pharmaceutical grade

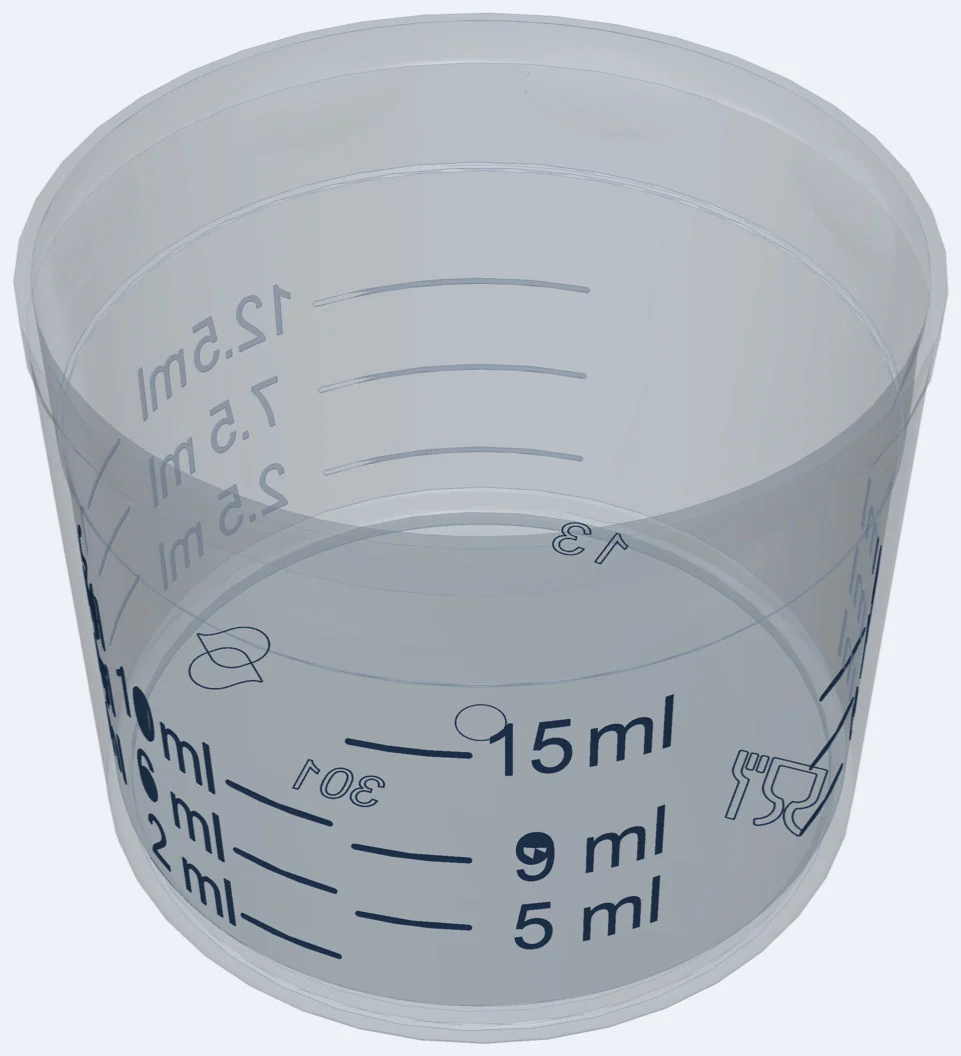

Clear 15 ml measuring cup

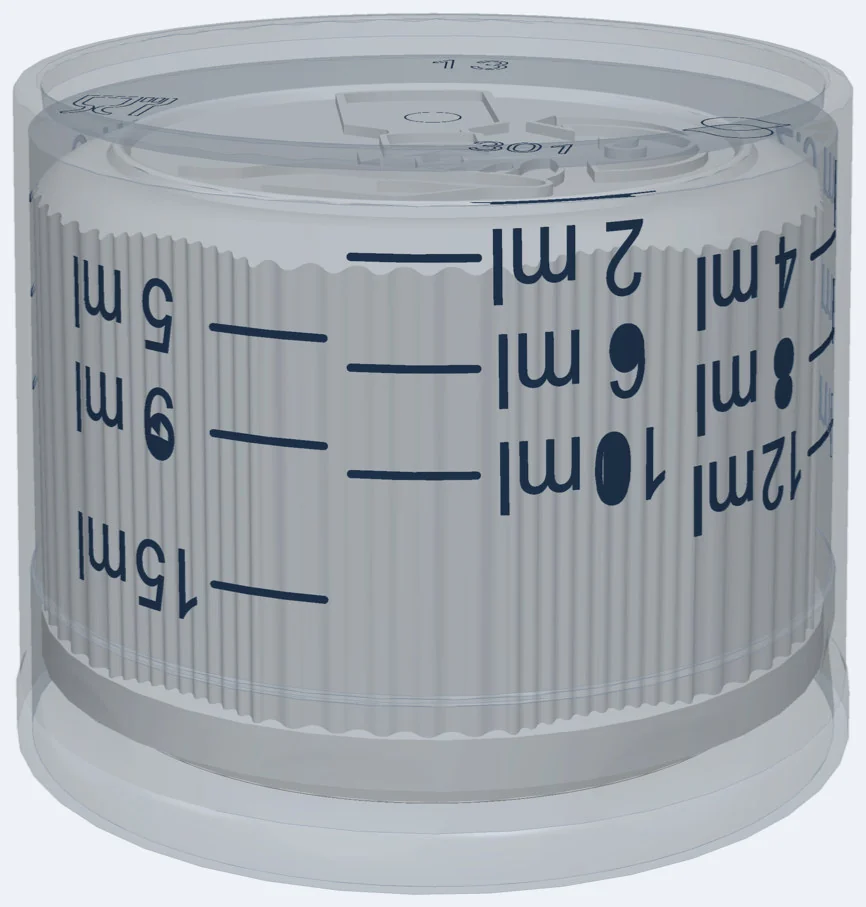

Measuring cup fitted over the CRC 28 closure
Measuring cup, top view

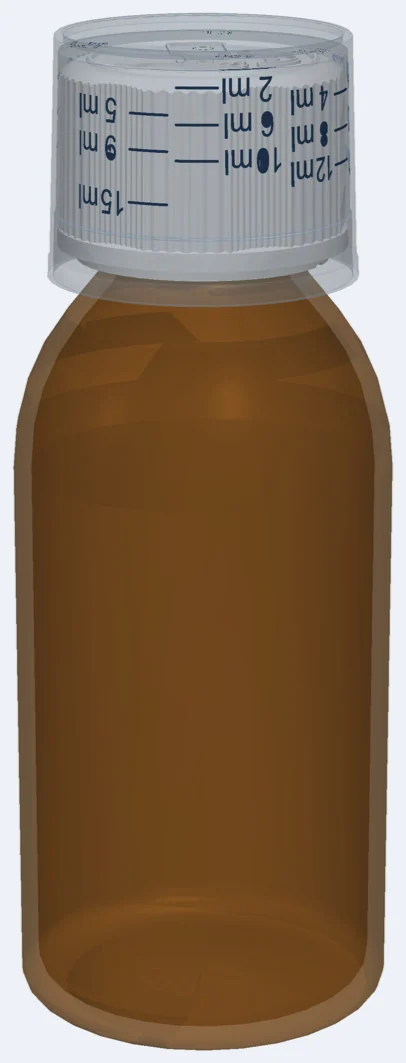

Complete pack: bottle, CRC 28 and cup
Technical data
Nominal capacity
15 ml
Graduations
2, 2.5, 3, 4, 5, 6, 7, 7.5, 8, 9, 10, 11, 12, 12.5, 15 ml
Brimful ≈
26.7 ml
Rim Ø × base Ø × height
37.8 × 34.5 × 29.3 mm
Weight
2.9 g
Fits
PSI CRC 28 mm closure — cup top ≈ 8.5 mm above the closure
Marking
Inside bottom: food-contact symbol, PSI logo mark, cavity number
Item code
PPS-MC-015-CL

Live 3D

Turn it around.

Real geometry from our engineering models — not illustrations. Drag to rotate, and open the closures to see what is inside.

HDPE tablet bottles

White HDPE with the CRC 38 closure seated on the 38 mm neck. Choose a size below.

Loading 3D model…
Drag to rotate

Custom packaging development

Your packaging idea — developed and made in Saudi Arabia.

Our Sudair plant is designed to meet your customised packaging demands. If you have a packaging product that you want to develop and produce locally in the Kingdom, we work with you from concept to realisation — design, engineering, tooling, validation and cleanroom production under one roof.

01Concept & design
02Engineering
03Realisation

From concept to realisation.

  1. Brief & feasibility

    We review your product, filling line, market and regulatory needs, and confirm technical and commercial feasibility.

  2. Design & engineering

    3D CAD design, photorealistic renderings, technical drawings, material selection and capacity and fit calculations.

  3. Prototypes & samples

    Prototype or pilot tooling and samples for your fit, function and stability evaluation.

  4. Tooling & validation

    Production moulds built with qualified tooling partners, process qualification and first-article inspection.

  5. Documentation

    Specification, drawing, technical data sheet and regulatory statements for your registration file.

  6. Local commercial supply

    Cleanroom production in Sudair, controlled changes and release documents for every lot.

What we can develop with you

Custom bottles & containers

New shapes, sizes and neck finishes in HDPE and other pharmaceutical polyolefins.

Closures & seals

Child-resistant, tamper-evident and lined closures engineered for your bottle.

Dosing accessories

Measuring cups and dosing parts with the graduations your product needs.

Glass decoration & formats

Ring-colour codes, printed artwork and ampoule or vial formats within ISO limits.

Colours & branding

Closure colours matched to your standard, embossed logos and customer-specific markings.

Localise an imported pack

Re-engineer a component you import today for production in the Kingdom (subject to design rights).

One partner, glass and plasticsTube converting, injection blow moulding, injection moulding and assembly on one site.
Engineering close to youSame time zone, same language — and site visits within days, not weeks.
Cleanroom from day oneDevelopment samples and commercial lots are made under ISO 14644-1 Class 8 conditions.
Supports your localisation goalsLocal production shortens your supply chain and reduces dependence on imports.

Quality & manufacturing

Built for qualification, made for everyday reliability.

Primary packaging is part of your product. That is why we design every PSI component, process and document with your regulatory file in mind.

Cleanroom production

Forming, moulding, inspection and packing take place under ISO 14644-1 Class 8 conditions, with controlled personnel and material flows.

100 % camera inspection

Every glass ampoule and vial passes in-line cameras for dimensions, cosmetic defects and decoration before packing.

Pharmacopoeia materials

Type I borosilicate glass to Ph. Eur. 3.2.1 and USP <660>; polyolefins selected to Ph. Eur. 3.1.3 and USP <661.1>.

GMP quality system

Our quality management system is built on GMP for primary packaging materials. We are working towards certification.

Change control

Written notice before any significant change to materials, process or site, as set out in our quality agreement.

Sterile on request

Supplied non-sterile as standard. Electron-beam sterilisation is available through a qualified partner in Riyadh.

A complete documentation pack.

Each product family comes with a controlled document set, ready for your supplier qualification and change control.

Standards we work to

ISO 8362-1ISO 9187-1ISO 9187-2Ph. Eur. 3.2.1USP <660>Ph. Eur. 3.1.3USP <661.1>ISO 14644-1

Products, raw materials and decoration colours are free of intentionally added latex, phthalates, bisphenol A and animal-derived substances (TSE/BSE-free).

  1. Product specificationDimensions, tolerances, test methods and AQL levels
  2. Technical data sheetKey properties and handling information
  3. Technical drawingFully dimensioned drawing for each product family
  4. Regulatory compliance statementPharmacopoeia, food-contact and substance statements
  5. Packing & labelling specificationBag, carton, pallet and label layout
  6. Certificate of AnalysisTest results for every lot
  7. Certificate of ConformanceWith every delivery
  8. Quality agreementResponsibilities, change notification and complaints
!

Certification status: PSI is a new manufacturing facility. We are working towards certification of our quality management system and towards product type-test certificates such as child resistance. Please ask us for the current status.

Services & ordering

More than a component supplier.

From the first sample to routine supply, we support your team with documentation, technical service and flexible options.

SelectChoose products and options with the item code builder below.
EvaluateRequest samples and the documentation pack for your qualification.
AgreeSign the quality agreement and confirm the specification revision.
OrderSend your purchase order — every delivery ships with CoA and CoC.

Build your item code.

Every PSI product is specified by one code. Pick your options and send it to us.

Product family
Form
Capacity
Glass
Break system
Identification rings
Ceramic printing

Your item code

Request a quotation

Sterilisation on request

Products are supplied non-sterile. Electron-beam sterilisation is available through a qualified partner in Riyadh. Ask us about suitability for clear glass, which can discolour under irradiation.

Clean packing & labelling

Double PE bags inside corrugated cartons, one lot per carton. Glass is packed in trays. Labels carry item code, lot, dates, quantity and GS1-128 / QR codes.

Samples & technical support

Samples, drawings and the full documentation pack for your evaluation — plus on-site support for line trials, torque settings and sealing parameters.

Customised versions

Your artwork on ampoules, your ring-colour code and closure colours to your standard (minimum order quantities apply).

Get in touch

Let's package your next product together.

Tell us the item codes, annual volume and delivery location and our team will get back to you with samples, documents and pricing.

Catalogue 2026–2027 · English (PDF) Catalogue 2026–2027 · Arabic (PDF)

Your message goes straight to our sales team.
